SawStop Scale Mitre Gauge

SawStop Scale Mitre Gauge: Repeatable, Dial-In Accuracy for Every Crosscut

Chasing crosscuts that land dead-on, every single time, without endless measuring and marking? The SawStop Scale Mitre Gauge is the precision upgrade your saw has been waiting for. With 180 locked-in angles and a familiar, easy-to-read interface, it lets you dial in exactly the setting you need and repeat it flawlessly, cut after cut.

It's built for accuracy you can trust and speed you'll appreciate. Whether you're mitring picture frames, squaring cabinet parts or knocking out identical components, this gauge keeps everything tight, square and repeatable so your projects come together beautifully.

Key Features

• 180 precise locked-in angles: Positive stops give you consistent, repeatable accuracy without second-guessing your setup.
• 90 notches in 1° increments: The mitre head clicks into precise, positive positions for fast, confident adjustments.

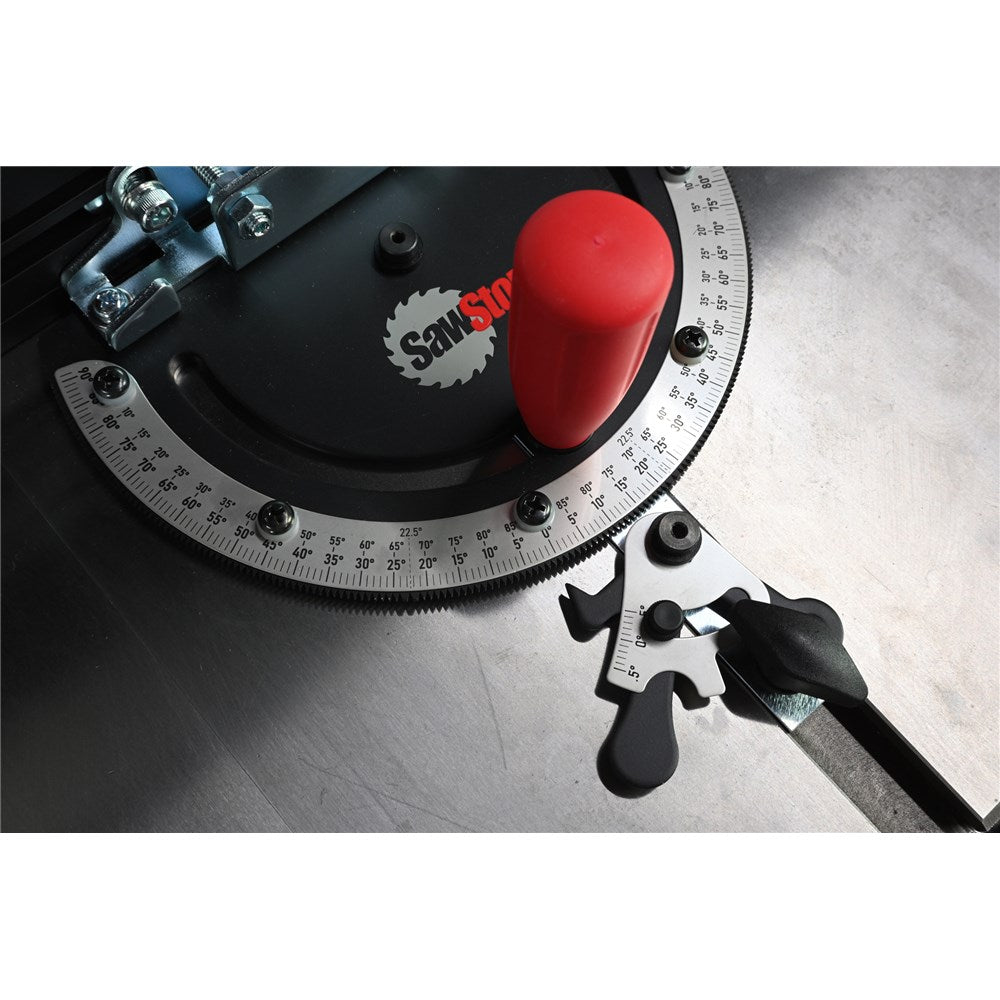

• Vernier scale for 1/10° fine-tuning: Dial in those extra-fine angle tweaks when a project demands absolute precision.
• 18" mitre bar with six adjustable washers: Eliminate play in the mitre slot for zero side-to-side movement and a smooth glide forward and back.
• 31" telescopic aluminium fence: Reference larger workpieces with ease and full, confident support.
• Calibrated fence scale: Read your crosscut length straight off the fence, so you skip the measuring and marking entirely.

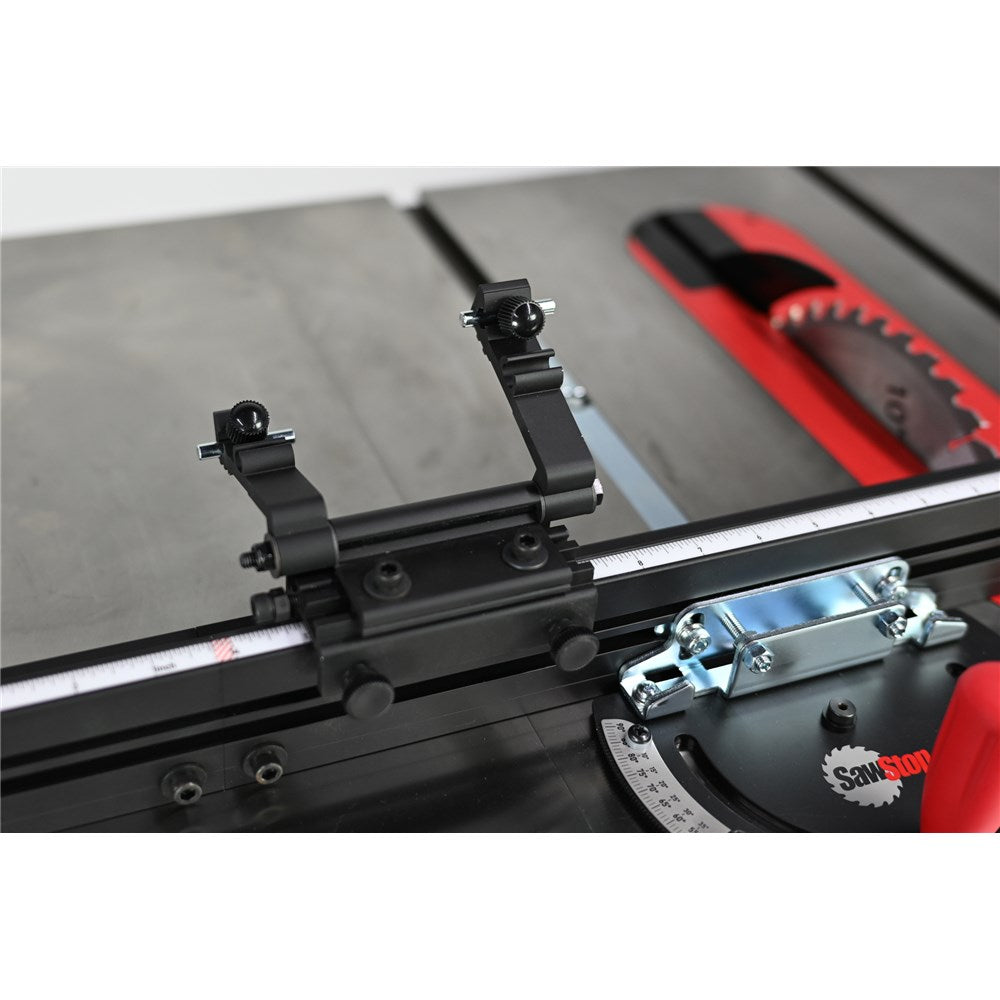

• Flip stop with 1/32" index increments: Set it once and make repeated cuts to identical length for perfectly matched parts.
• Dual arms with micro adjusters: Set each arm independently or link them together, then fine-tune both for pinpoint accuracy.

Main Applications

• Squaring and cross-cutting furniture and cabinetry components with repeatable precision.
• Cutting accurate mitres for frames, boxes and fine joinery.
• Producing batches of identical parts using the flip stop for consistent lengths.
• Handling larger panels and long stock with the extended telescopic fence.

Specifications

• Locked-in angles: 180 precise positions.
• Mitre head notches: 90 in 1° increments.
• Fine adjustment: Vernier scale in 1/10° increments.
• Mitre bar: 18" long with six adjustable washers to eliminate slot play.
• Fence: 31" telescopic aluminium.
• Fence scale: Calibrated for measure-free, mark-free crosscuts.
• Flip stop: Indexes in 1/32" increments for repeated cuts.
• Arms: Dual arms, set independently or linked, each with a micro adjuster.

A quick tip: once you've calibrated the fence scale against a known-square offcut, lock in your flip stop for any repeated run. You'll cut a whole batch of matched parts without reaching for a tape measure once, saving time and keeping every piece identical.

Ready to bring repeatable, dial-in precision to your crosscuts? Add the SawStop Scale Mitre Gauge to your cart today and craft with confidence.
