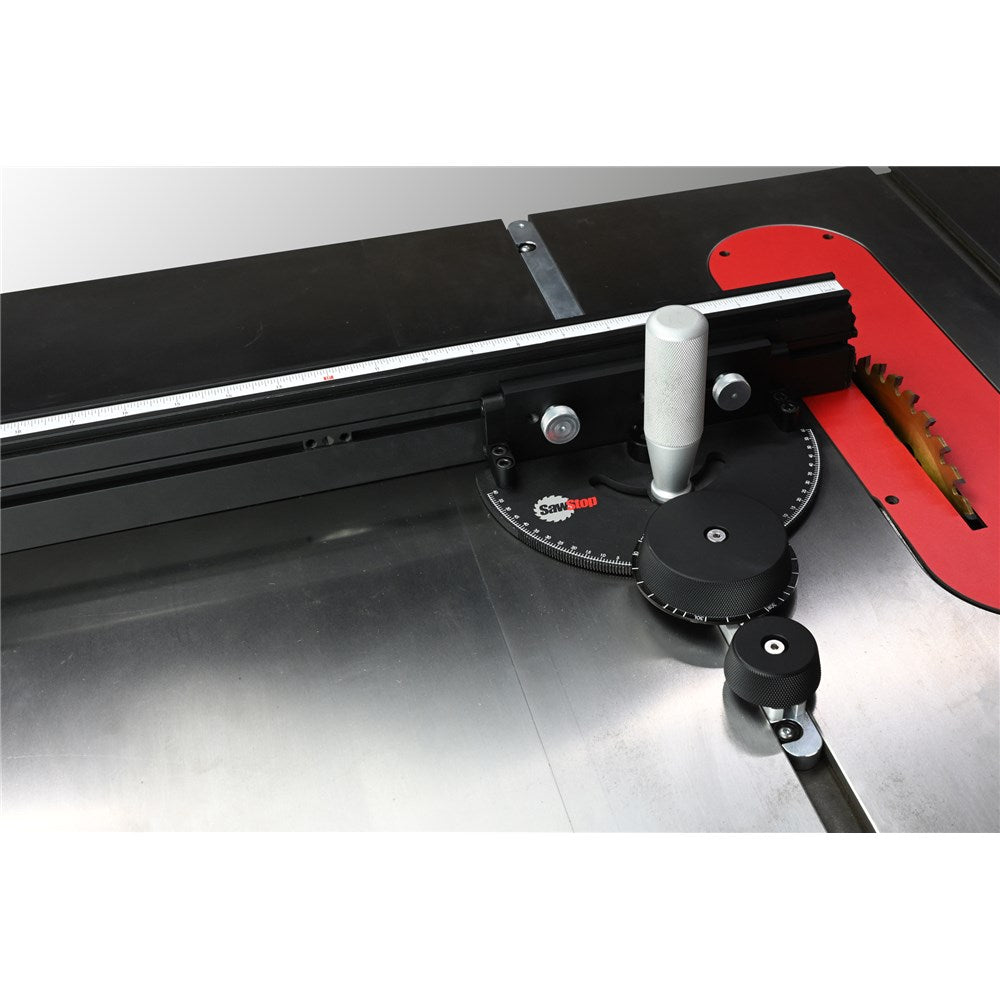

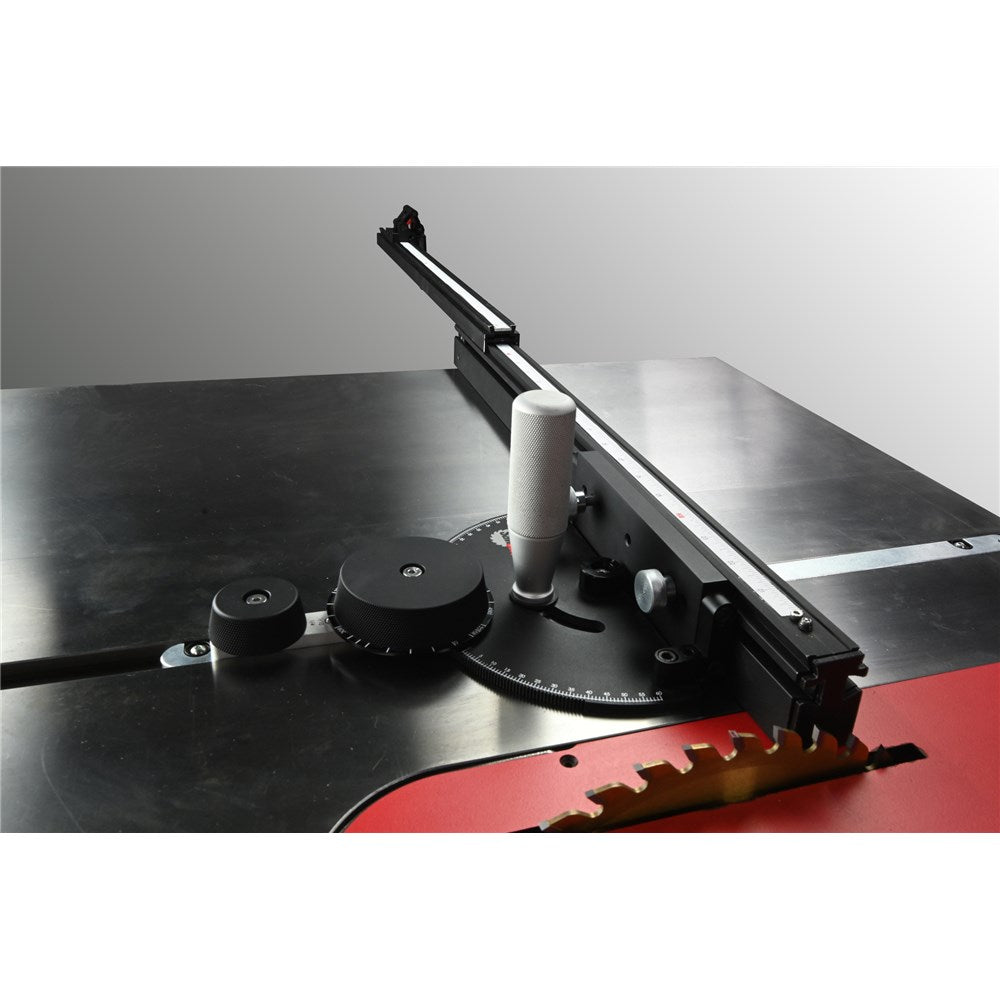

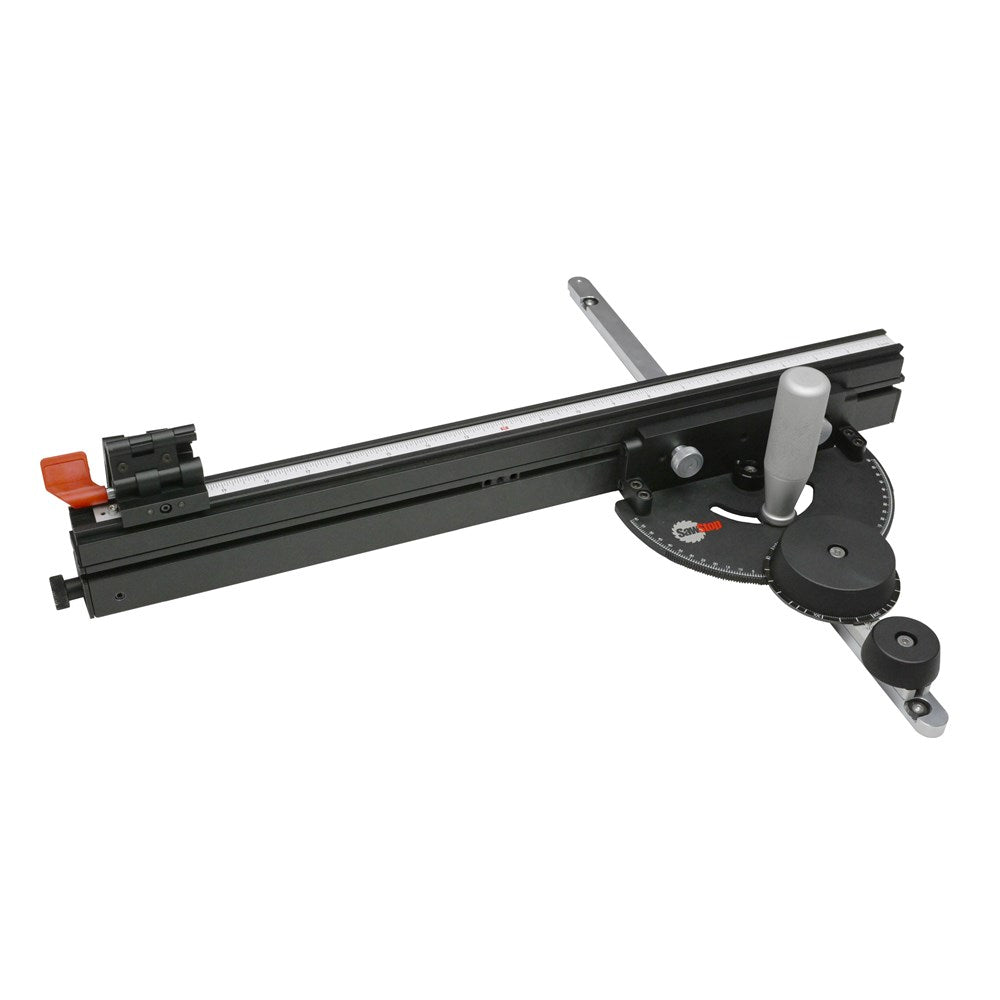

SawStop Revolution Mitre Gauge

SawStop Revolution Mitre Gauge: Dial In Perfect Angles with a Simple Twist

Wish you could set a precise mitre angle in seconds and trust it to hold, cut after cut? The SawStop Revolution Mitre Gauge unlocks your table saw's full potential with unmatched precision at the spin of a dial. Intuitive, tool-free adjustments give you fine-tuning that's exact, reliable and repeatable, so you spend less time fiddling and more time cutting.

It's built for accuracy you can feel. Rotate freely for any angle, or click into locked indexable positions for your most-used settings. Whether you're mitring frames, squaring cabinet parts or batching identical components, this gauge keeps everything tight, true and repeatable.

Key Features

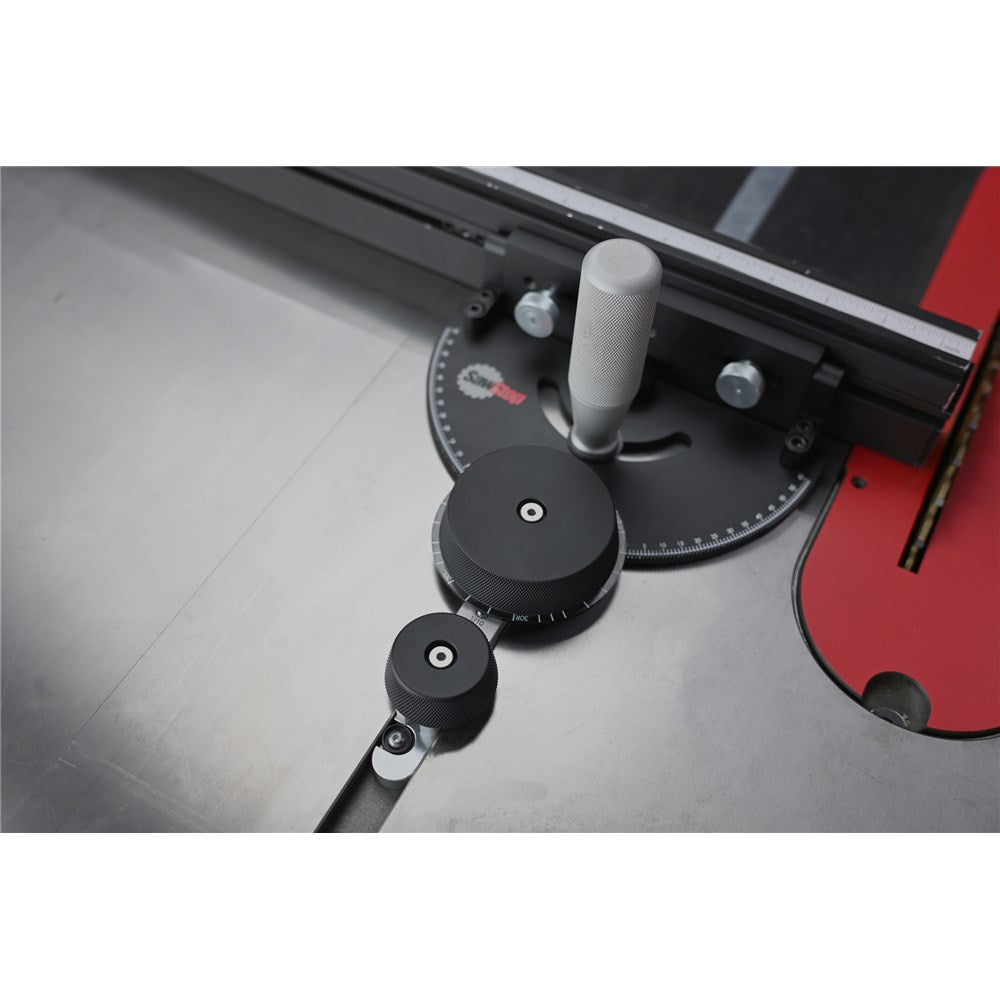

• Dial-based angle adjustment: Set your mitre angle by simply spinning a dial, with pre-set increments of 1°, 1/2°, 1/4° and 1/10° that click into place for fast, confident changes.
• Free rotation or locked angles: Rotate freely to any angle you need, or lock into indexable positions for quick, repeatable setups.
• Tool-free operation: Every adjustment is made by hand, so you dial in precision without reaching for a single spanner.
• Telescopic aluminium fence: Extends from 24" to 37", giving you full support and easy referencing on larger workpieces.

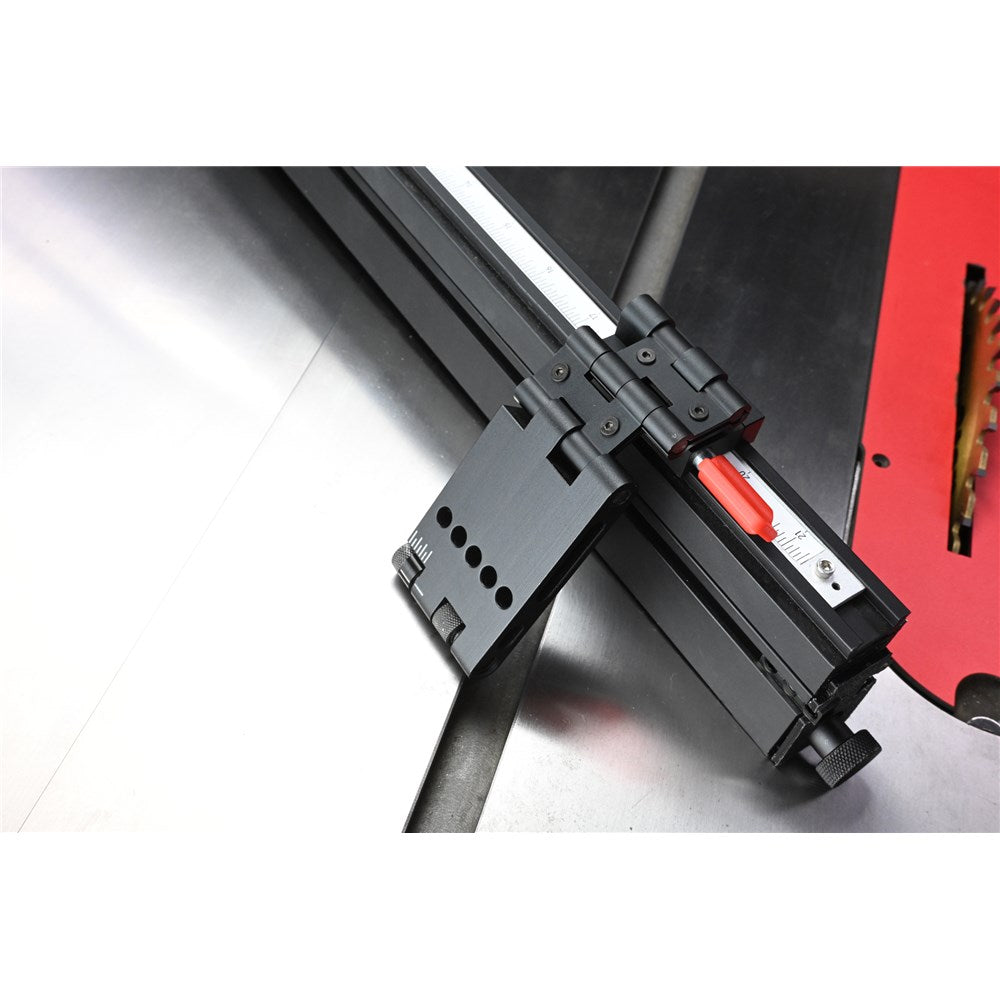

• Articulating flip stop: Features micro-adjustment for exact, repeatable cuts, plus mounting holes for jig accessories and locking into the wedge system.

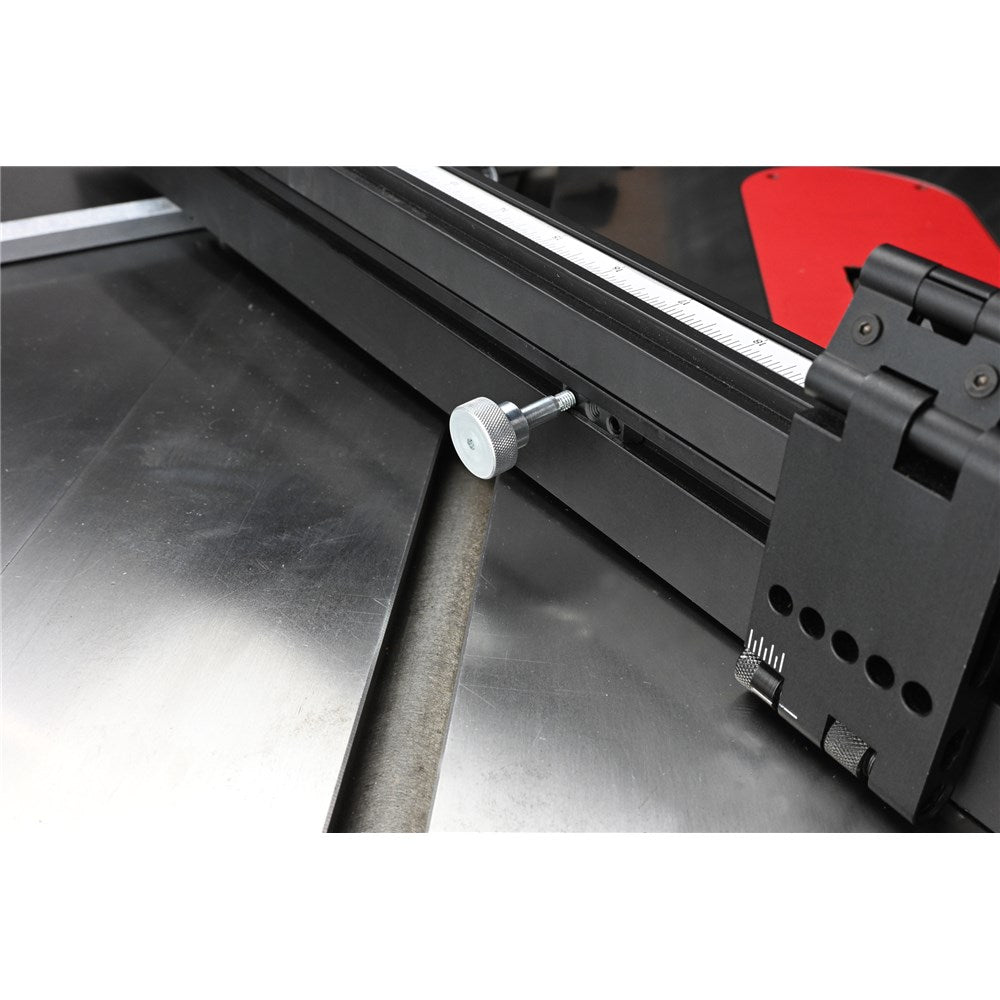

• Accessory tracks: Built into the fence for easy attachment of a sacrificial fence, protecting your edges and reducing tear-out.
• Heavy-duty steel mitre plate: Manufactured to precise machine tolerances for lasting precision and rugged durability.

Main Applications

• Cutting accurate mitres for frames, boxes and fine joinery.
• Squaring and cross-cutting furniture and cabinetry components with repeatable precision.
• Producing batches of identical parts using the flip stop and micro-adjustment.
• Handling larger panels and long stock with the extended telescopic fence.

Specifications

• Angle adjustment: Dial-based with pre-set increments of 1°, 1/2°, 1/4° and 1/10°, clicking into place.
• Rotation: Free rotation or locked, indexable angles.
• Adjustment type: Tool-free throughout.
• Fence: Telescopic aluminium, extending from 24" to 37".
• Flip stop: Articulating with micro-adjustment, mounting holes for jig accessories and wedge system locking.
• Accessory tracks: In the fence for sacrificial fence attachment.
• Mitre plate: Heavy-duty steel, manufactured to precise machine tolerances.
• Compatibility: SawStop table saws.

A quick tip: fit a sacrificial fence into the accessory tracks before your first run, then set your flip stop against a known-square offcut. You'll get zero-clearance support that curbs tear-out and lets you batch matched parts without measuring each one.

Ready to bring effortless, dial-in precision to every angle? Add the SawStop Revolution Mitre Gauge to your cart today and craft with confidence.
