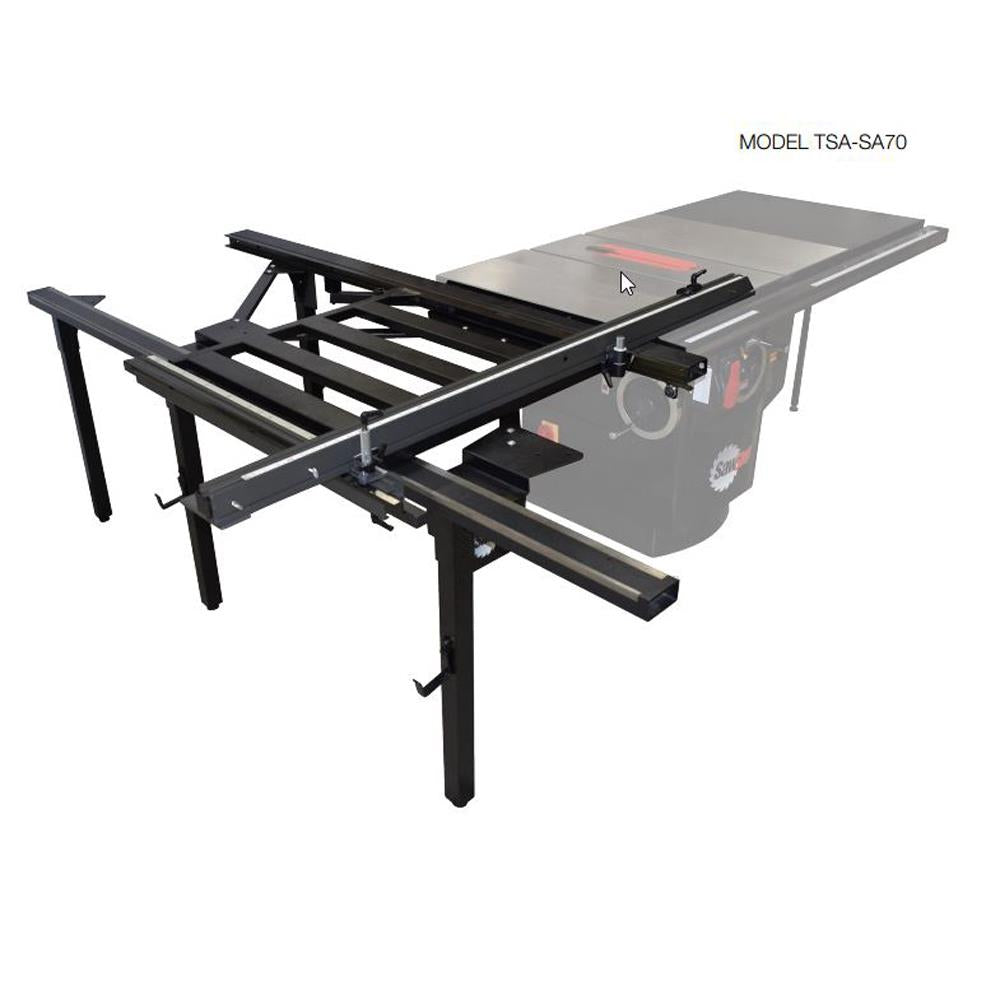

SawStop Large Sliding Table

SawStop Sliding Table for the Professional (PCS) and Industrial (ICS) Cabinet Saws: Cut Full Sheets Safely, Accurately, Every Time

Wrestling full sheets of ply across your saw and wishing you had steadier support and cleaner cuts? SawStop developed this sliding table to complement their Professional and Industrial saw range, giving you a large-format, precision platform for handling sheet material with control and confidence. With a generous 158kg weight capacity and 14 sealed bearings running along a rigid steel frame, it glides smoothly through the longest cuts while keeping you safe on the world's safest table saw.

Better still, it's built for repeatability. Fold-away fence stops let you cut a piece, swing the stop clear to remove the offcut, then drop it back for the next identical part. Machined detents at 0°, 15°, 22.5°, 30° and 45° make your most-used angles quick to select, so mitres and angled cuts come together fast and true.

Key Features

• 158kg weight capacity fully extended: Handles heavy sheet goods and long stock with ease, so you can cut large panels safely and steadily.
• 14 sealed bearings on a rigid steel frame: Deliver smooth, effortless travel across the full length, with brushes to keep the rail clean for years of reliable use.
• 1816mm maximum table travel: A generous 1.8m of movement lets you break down full sheets in a single, controlled pass.
• Fold-away fence stops: Set your length once, cut, swing the stop aside to clear the offcut, then lower it again for perfectly matched successive pieces.
• Machined angle detents: Positive stops at 0°, 15°, 22.5°, 30° and 45° make common mitres and angles quick and easy to dial in.
• Large 762mm x 775mm sliding table: Gives you a stable, supportive surface for referencing wide workpieces with confidence.
• Built for PCS and ICS saws: Purpose-designed to integrate with your SawStop Professional or Industrial cabinet saw for safe, accurate cutting.

Main Applications

• Breaking down full sheets of ply, MDF and other panel goods safely and accurately.
• Cutting precise mitres and repeated angles using the machined detents.
• Producing batches of identical parts with the fold-away fence stops.
• Squaring cabinetry and furniture components where accuracy and support matter most.

Specifications

• Net weight: 78.5kg.
• Weight capacity (fully extended): 158kg.
• Sliding table dimensions: 762mm x 775mm.
• Maximum table travel: 1816mm.
• Maximum rip capacity (front mounting): 1244mm.
• Maximum rip capacity (rear mounting): 1778mm.
• Bearings: 14 sealed heavy-duty steel bearings with rail-cleaning brushes.
• Frame: Rigid steel construction.
• Angle detents: Machined at 0°, 15°, 22.5°, 30° and 45°.
• Fence: Fold-away stops for repeatable cuts.
• Footprint required: 1900mm width x 2400mm length of additional workshop space.
• Compatibility: SawStop Professional (PCS) and Industrial (ICS) cabinet saws.
• Installation note: Requires minor modification to your fence rail. Not compatible with mobile bases, as there is no capacity to lift the sliding table assembly. Allow one full day for assembly, installation and adjustment.

A quick tip: set aside a clear, uninterrupted day for installation and give yourself room to work through the fence rail modification and adjustment carefully. Take your time dialling in the alignment and detents against a known-square offcut, and you'll be rewarded with dead-accurate cuts from the very first sheet.

Ready to bring safe, large-format precision to your sheet work? Add the SawStop Sliding Table for the PCS and ICS to your cart today and craft with confidence.
