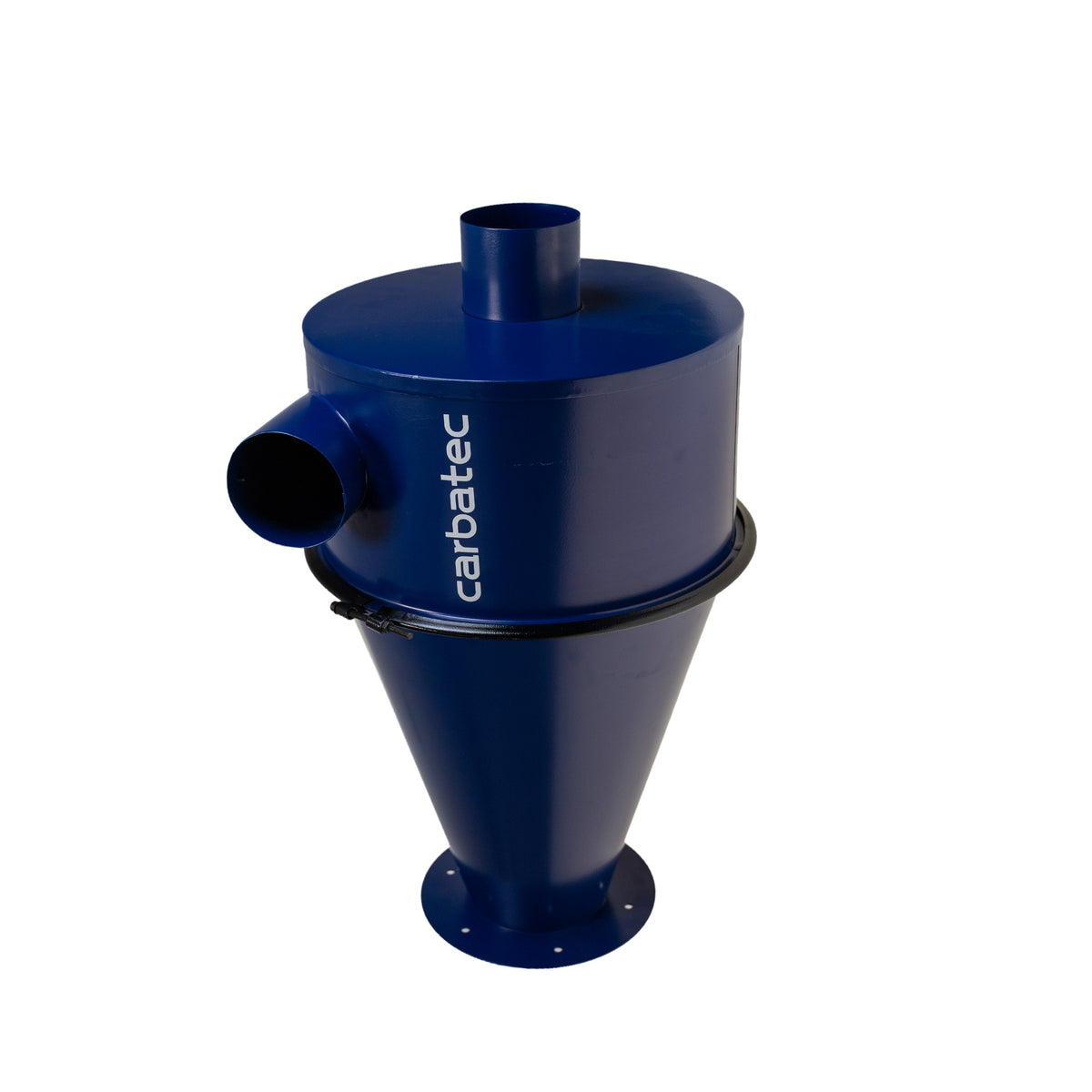

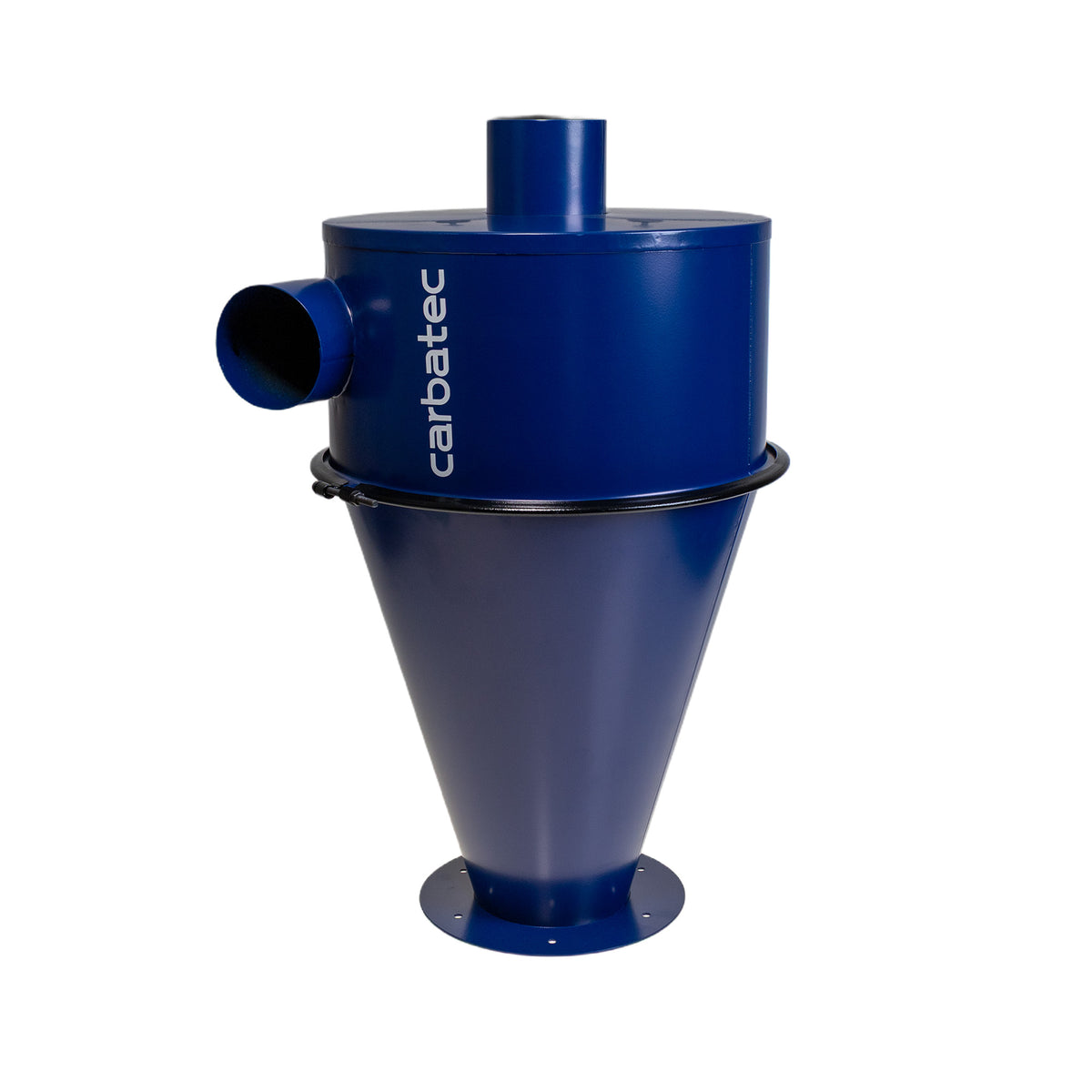

Carbatec Cyclone Separator Cone Assembly: Add Two-Stage Separation and Keep Your Filter Cleaner for Longer

Watching your dust collector fade halfway through a session? As chips and shavings pack into the filter, airflow drops and suction weakens right when you need it most. The Carbatec Cyclone Separator Cone Assembly gives you a smart, affordable way to fix that. Fit it to a suitable drum or container you already have, and it spins the heavier material out of the airstream before it ever reaches your collector.

The result is a proper two-stage setup, less filter loading and far less time spent cleaning. This is the cyclone assembly only, so if you already have a drum on hand, you have most of what you need to upgrade.

Key Features

• Unpowered cyclone separation: Draws on the airflow from your existing dust collector to separate heavier chips, shavings and dust, so there's no second motor to buy, wire or maintain.

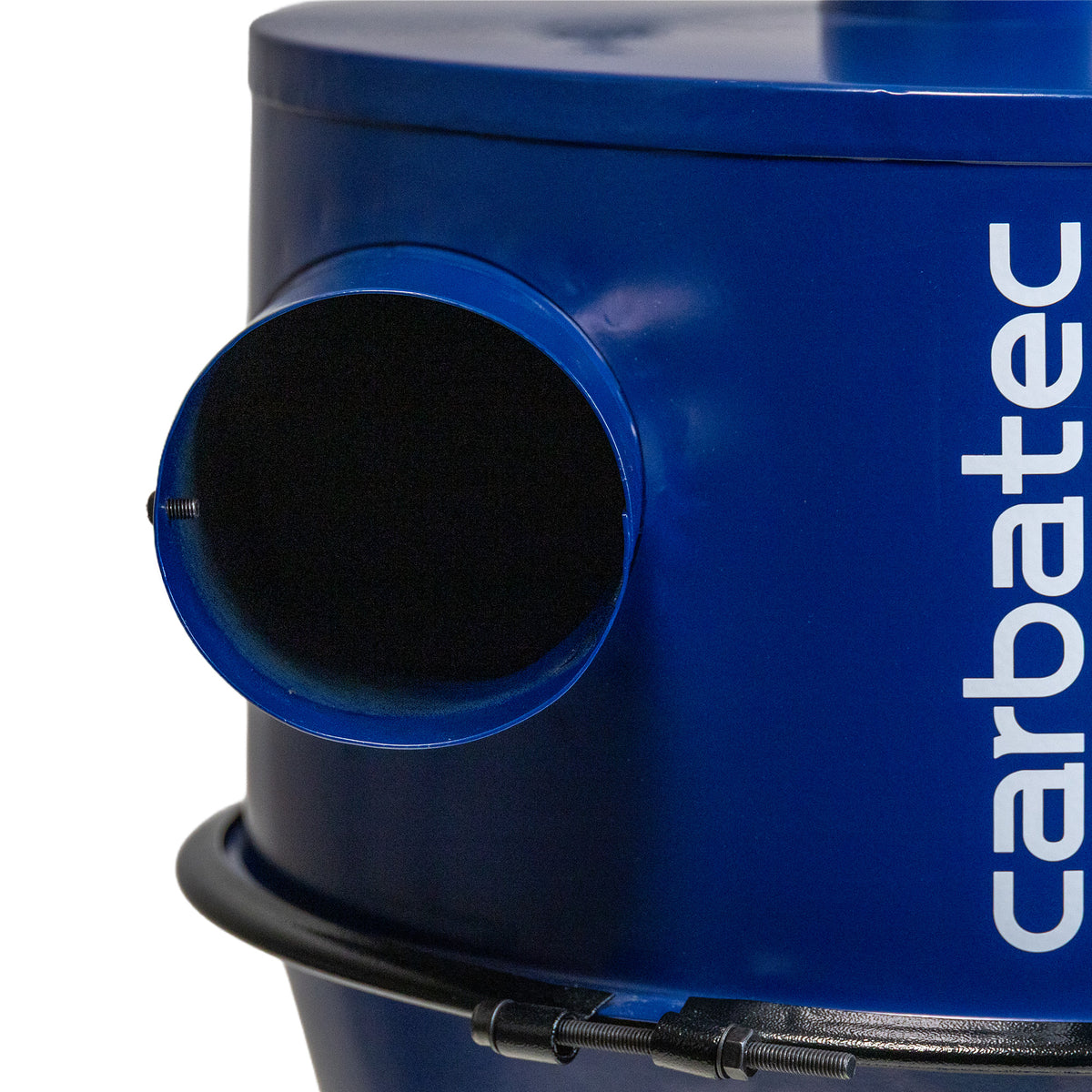

• 4" inlet and outlet: Connects straight to standard 4" dust collection hose and fittings, making installation quick and straightforward.
• Up to 1300 CFM airflow: Handles dust collection systems delivering up to 1300 CFM, so it keeps pace with a busy workshop.
• Up to 2 HP compatibility: Designed for use with dust collectors up to 2 HP, matching most single-stage setups.
• True two-stage separation: Catches the bulk of chips and shavings before they reach your main collector, protecting airflow and cutting filter cleaning.
• Cyclone assembly only: Supplied without a drum, castors or negative-pressure bag retention, so you can build it into a container that suits your space and budget.

Ideal For

• Adding cyclone separation to an existing dust collection system.
• Woodworkers who already have a suitable collection drum or container.
• Reducing the chips and shavings that reach your main dust collector.
• Helping cut filter loading and cleaning frequency.
• DIY and custom dust collection builds.

Specifications

• Separation type: Unpowered cyclone (uses your existing collector's airflow).
• Inlet: 4".
• Outlet: 4".
• Airflow suitability: Up to 1300 CFM.
• Collector compatibility: Up to 2 HP.

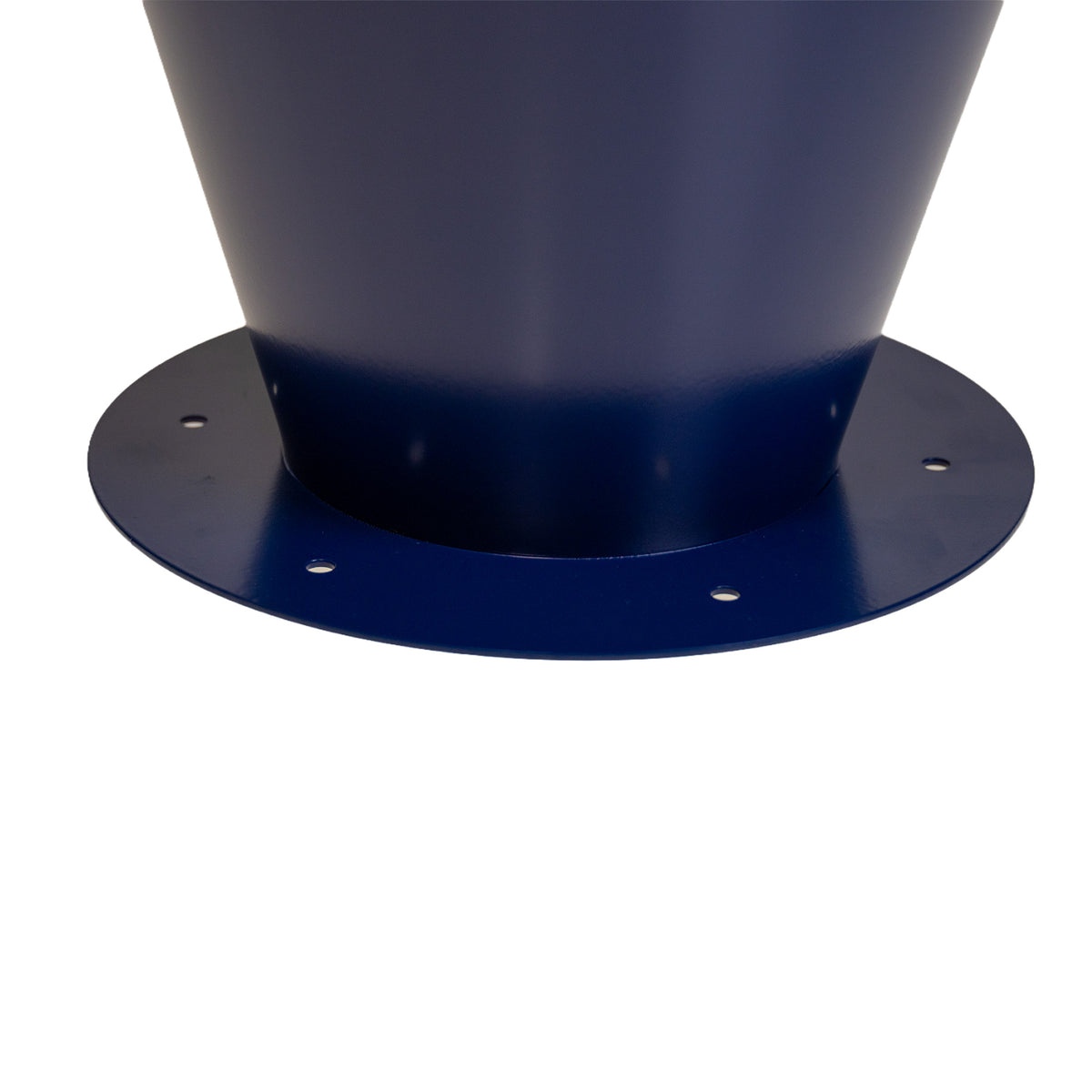

• Installation: Fits a suitable existing drum or container.
• Included: Cyclone cone assembly only (no drum, castors or negative-pressure bag retention).

A quick tip: choose a sturdy, airtight drum with a well-sealing lid for your build. Any air leaks around the container reduce the cyclone's efficiency, so a snug seal keeps the separation working at its best and stops fine dust carrying over into your collector.
